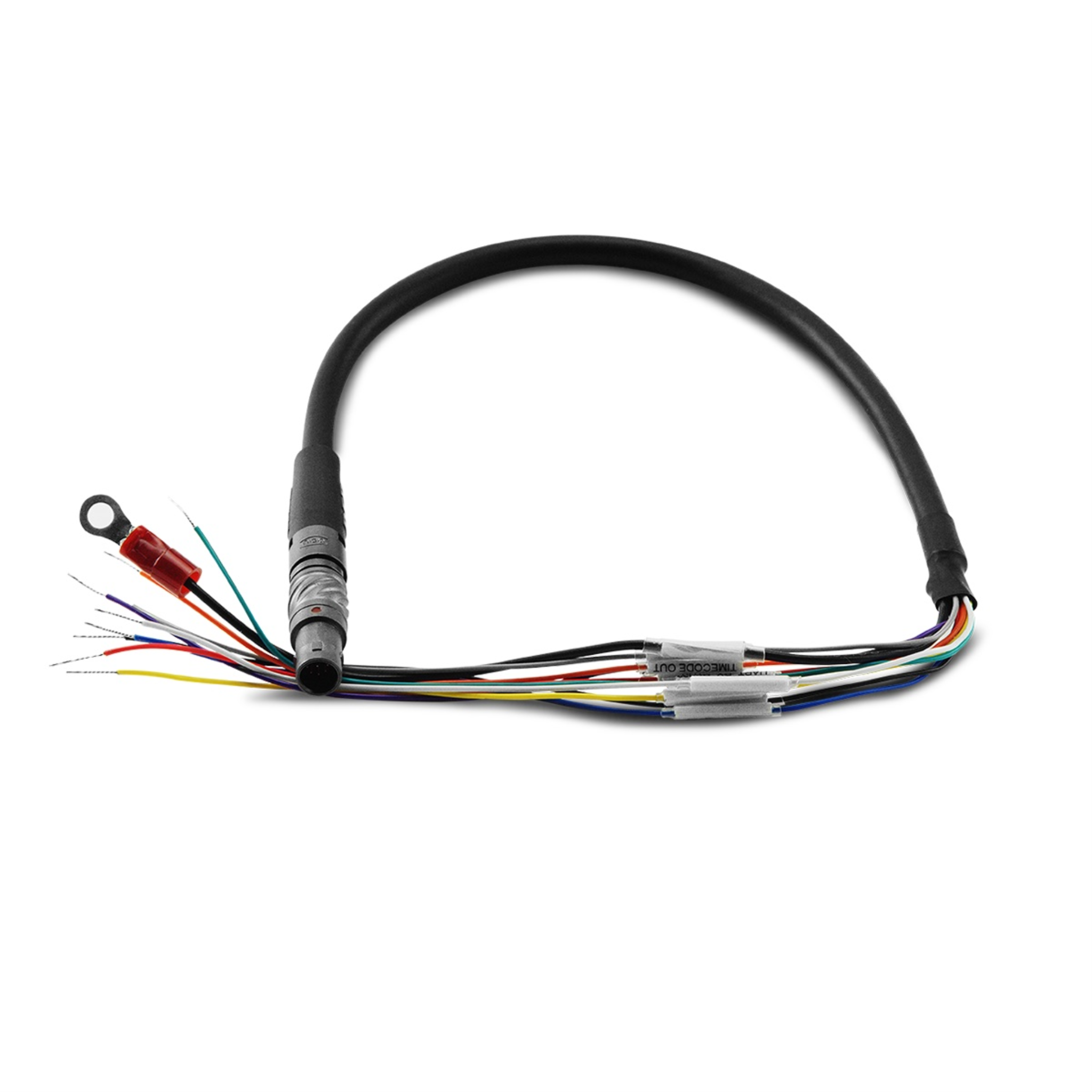

PIN | SIGNAL | DESCRIPTION |
---|---|---|
1 | 5 V AUX | 5 Volt AUX (500 mA Max) enabled using the Power menu |
2 | Timecode Out | Timecode Out – SMPTE 12M1 |
3 | GPO | General Purpose Out, Tally or Sync, 3.3 Volt Logic Level1 |
4 | UART TX | RS-232 Transmit |
5 | UART RX | RS-232 Receive |
6 | GPI | General Purpose In, 3.3 Volt Logic Level2 |
7 | Timecode In | Timecode In – SMPTE 12M |
8 | Genlock | Tri-Level Genlock In (SMPTE 296M and 274M) |
9 | GND | Signal and Power Ground |
1. Not currently supported
2. The signal path includes a resistor pulling the signal high, which is designed to work with a closure switch connected to GND.
