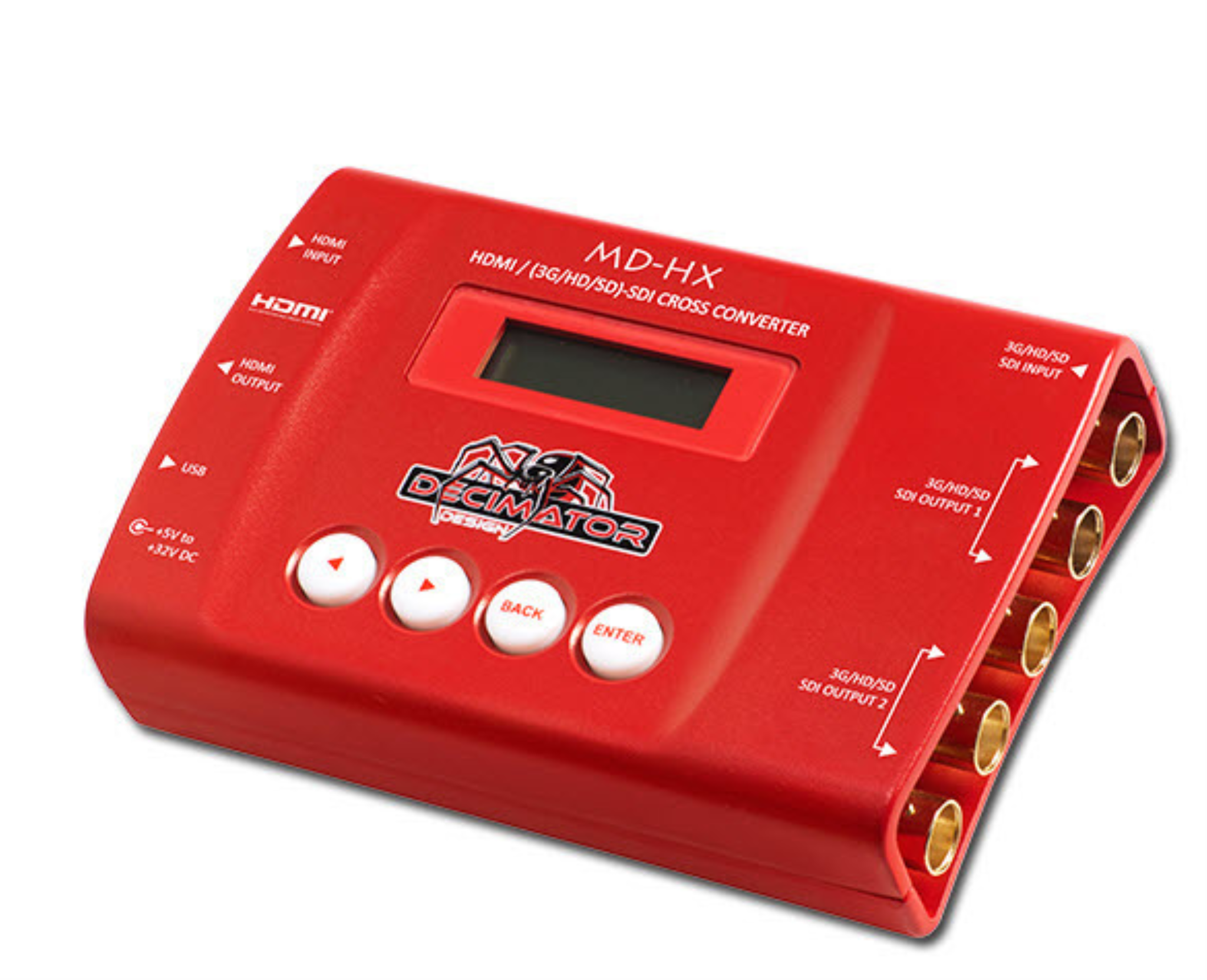

Decimator MD-HX: HDMI/SDI Cross Converter w/ Scaling & Frame Rate Conversion
303.85 CHF328.45 CHF inkl. 8.1% MwSt
Artikel-Nr.
160.MD-HX
Garantiezeit
36 Monate
Verfügbarkeit
Nicht an Lager (Nächste Verfügbarkeit ca. 01.01.2025)
HDMI / SDI CROSS CONVERTER
with Scaling and Frame Rate Conversion
with Scaling and Frame Rate Conversion
-
Supports both 3G level A and B on the input and output. Allowing conversion between A and B.
-
Horizontal and/or Vertical image flipping via the built in scaler.
-
Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
-
Robust Aluminium Case with easy to use LCD and button control system.
-
Features the following 14 modes:
-
SDI IN to HDMI and SDI OUT
-
SDI IN to SDI OUT and HDMI IN to HDMI OUT
-
SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
-
SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
-
HDMI IN to SDI OUT and SDI IN to HDMI OUT
-
HDMI IN to HDMI and SDI OUT
-
HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
-
HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
-
Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
-
Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
-
Scaled SDI IN to HDMI and SDI OUT
-
Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
-
Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
-
Scaled HDMI IN to HDMI and SDI OUT
-
4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
-
The audio pairs in the SDI and HDMI outputs can be rearranged as required.
-
Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.
-
This unit also includes:
-
USB port for control and firmware updates
-
New Metal Thread Locking DC Power Socket
-
Power Supply, HDMI Cable and USB Cable
