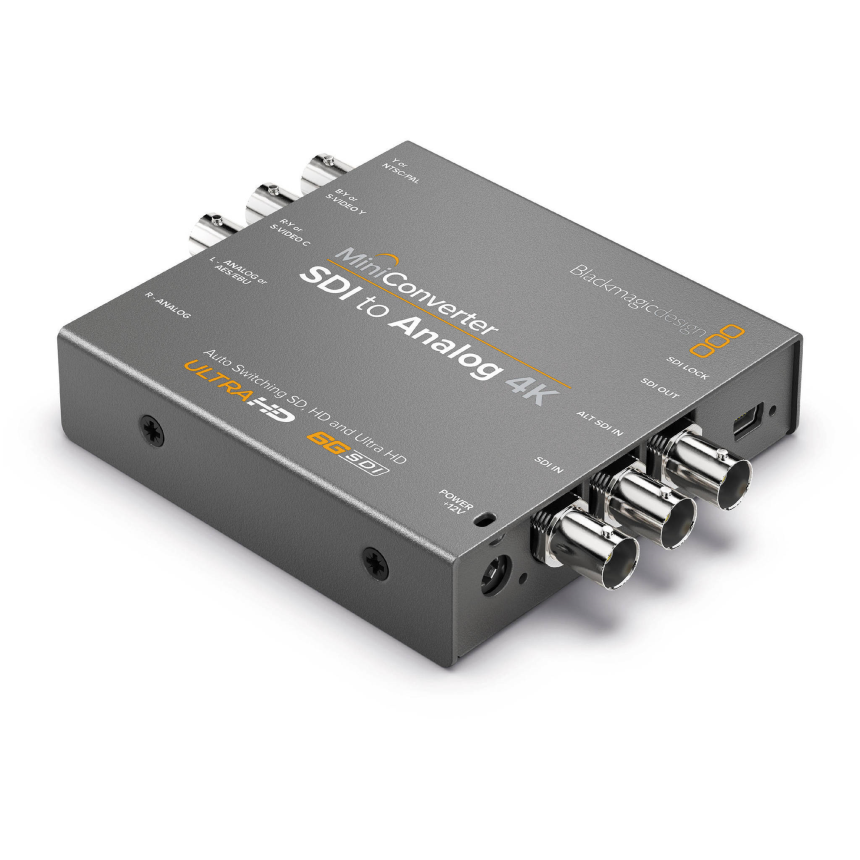

Blackmagic BM-CONVMASA4K Minikonverter SDI-Analog 4K

Convert from SD, HD, 3G and 6G-SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video!

Connections:

SDI Video Input: Switchable between SD, HD and 6G-SDI.

SDI Video Output: Automatically matches the SD, HD and 6G-SDI video input.

Analog Video: NTSC, PAL and S-Video from and component HD from 6G-SDI input.

Analog Audio: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.

AES/EBU Digital Audio: 2 channels of professional balanced digital with standard 1/4 inch jack connections.

SDI Redundant Input: Automatically switches over if main SDI input is lost.

Multi Rate Support: Auto detection of 6G-SDI, HD or standard definition SDI inputs.

Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)

Reclocking: Yes

Standards:

SD Format Support: 525/29.97 NTSC, 625/25 PAL

HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30

2K Format Support: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25

4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24

SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.

SDI Video Rates: SDI video connections are switchable between standard definition and high definition adn UHD

SDI Video Sampling: 4:2:2

SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision: 4:2:2

SDI Color Space: YUV

SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.

Analog Format Support: 625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30

Analog Color Space: YUV

Analog Color Precision: 4:2:2

Format Conversion:

HD down conversion

Software:

Software Control: Mac OS X™ and Windows™ software upgrade via USB.

Internal Software Upgrade: Via included updater application.
