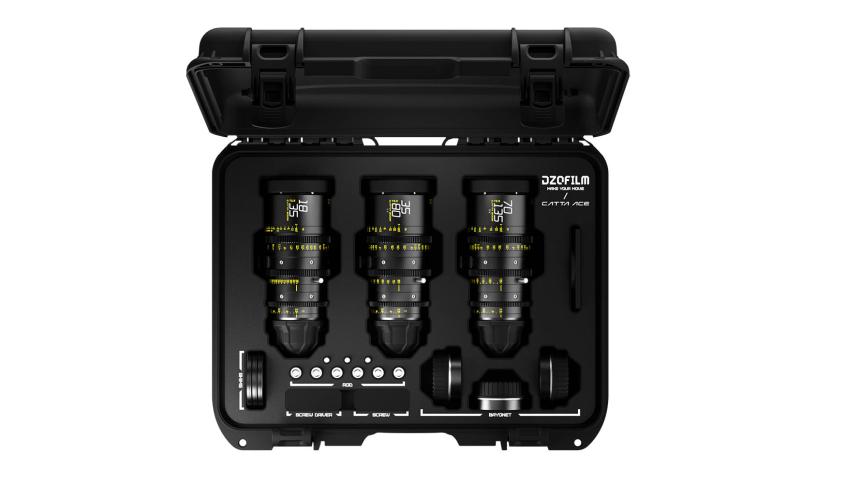

DZOFILM Catta Zoom FF - Bundle 15-35mm / 35-80mm / 70-135mm T2.9 Black (E? RF? L? X? Z?)

WE HAVE ALL MOUNTS YOU WANT

E? RF? L? X? Z? Pick one you love. Quick release mount design, get rid of screws or screwdriver to change mount.

PLUG-IN FILTER UNLOCK THE SECRET

Not only the lens loaded with 77mm detachable front filter to stimulate the unique moment but also the rear plug-in filter adds amusement to the shooting experience.

Allowing users to change ND/UV/Streak/Mist filter freely.

PARAMETER

FOCAL LENGTH	18-35 mm	35-80 mm	70-135 mm
COLOUR	BLACK / WHITE
MOUNT	E/RF/L/X/Z
T-STOP	T2.9-T22
IMAGE CIRCLE	φ43.5mm(FULL FRAME)
OPTICAL CONSTRUCTION	20 Elements in 14 Groups	20 Elements in 15 Groups	17 Elements in 11 Groups
FLANGE DISTANCE	E=18mm,L/RF=20mm,X=17.7mm,Z=17mm
CLOSE FOCUS [ FROM SENSOR PLANE ]	0.51m/1ft8in	0.74m/2ft5in	0.76m/2ft6in
ZOOM RATIO	1.9X	2.3X	1.9X
IRIS CONTROL	Manual(rotation angle 77°)	Manual(rotation angle 75°)	Manual(rotation angle 80°)
FOCUS CONTROL	Manual(rotation angle 270°)
ZOOM CONTROL	Manual(rotation angle 100°)
FRONT DIA.	φ80mm/3.15"
LENGTH	212.4mm/8.36"（RF/L）,214.4mm/8.44"（E）,214.7mm/8.45"(X）,215.4mm/8.48"(Z）
IRIS BLADE	16
FILTER SIZE	M77
GEAR PITCH	0.8 Mod
MATERIAL	PC+GF
WEIGHT	≈1680g	≈1532g	≈1597g
