Model | ATEM156 |
Screen Size | 15.6" IPS |
Color Depth | 16.7M colors (8-bits) |
Resolution | 1920×1080 pixels |
Pixel Pitch | 0.17925 (H) X 0.17925 (V) mm |
Aspect Ratio | 16:9 |
Brightness | 250cd/m² |
Contrast Ratio | 800:1 |
Backlight | LED |
Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |

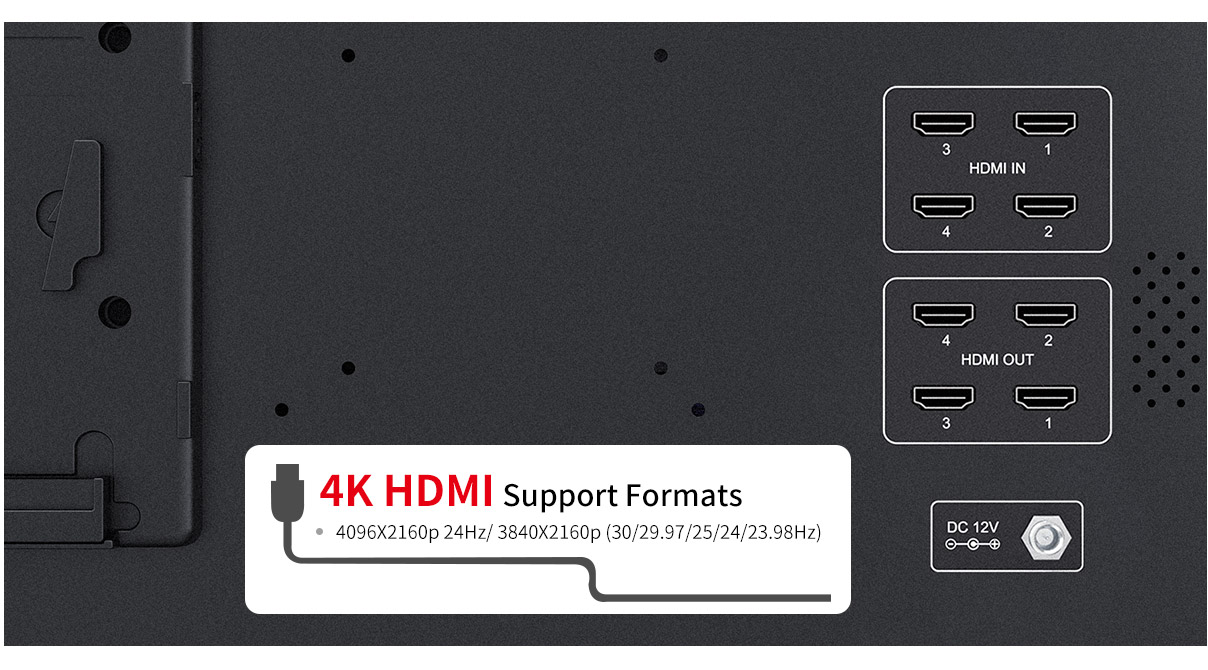

4 X HDMI | HDMI (Support 4K 30Hz) |
4 X HDMI | HDMI (Support 4K 30Hz) |
Audio Out | 3.5mm Stereo Headphone |
480i/576i/480p/576p |
720p (60/59.94/50/30/29.97/25/24/23.98) |
1080i (60/59.94/50) |
1080p (60/59.94/50/30/29.97/25/24/23.98) |
3840×2160p (30/25/24), 4096×2160p (24) |
Input Voltage | DC12~24V |
Power Consumption | ≤12W |
Working Temperature | -10°C~50°C |
Storage Temperature | -20°C~60°C |
Unit Size (mm) | 372L×262H×28.4D (mm) (Without Bracket) |
Unit Weight | 1.57kg (Without Bracket) |
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P) |
* Peaking Focus Assist |
* False Color |
* Anamorphic (x1.33, x1.5, x1.8, x2.0) |
* Display Rotate (0°, 90°, 180°, 270°, H Mirror, V Mirror) |
* Check Field (Red, Green, Blue, Mono) |
* Image Freeze |
* Zoom |
* Pixel to Pixel |
* Center Marker |
* Safety Marker (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1) |
* Line Color (Red, Green, Blue, White) |
* Color Temperature Adjustment |
