SWIT M-1093F | 2x9" Rackmount IPS LCD Panel, Waveform. ---Over 1 months LeadTime if no stock
1'789.00 CHF1'933.90 CHF inkl. 8.1% MwSt
SWIT M-1093F | 2x9" Rackmount IPS LCD Panel, Waveform. ---Over 1 months LeadTime if no stock 2x9" LCD Rack-mount full-professional monitor with waveform etc.
Artikel-Nr.
719.M-1093F
Garantiezeit
24 Monate
Verfügbarkeit
Nur noch 1 Stück verfügbar

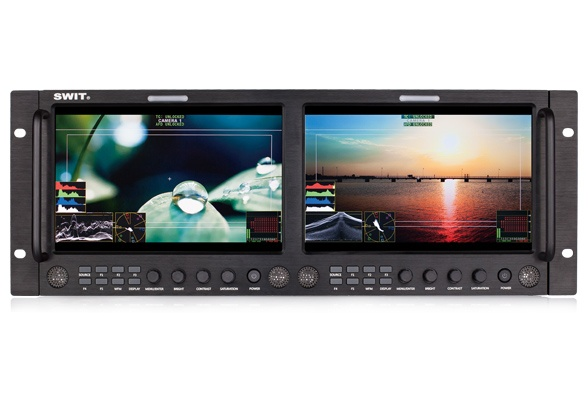

M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor
› 9-inch IPS LCD Panel ×2
› 1920×1200 resolution, 1000:1 contrast
› 19-inch 4U rack mounting, ±30° rotatable
› 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
› 16-ch Embedded audio meters with alert
› Select any 2 audio channels to output
› Waveform Y/Cb/Cr/R/G/B and single line
› Vector scope, histogram R/G/B/Y
› AFD, H/V delay, R/G/B/Mono, False color
› TSL UMD and text TALLY display
› Zebra stripes, Peaking focus assist
› SDI timecode display
› Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
› TALLY light and GPI control
› USB firmware upgrade
LCD Performance
|
Size |
9 inches ×2 |
|
Display area |
191.52×119.70mm |
|
Resolution |
1920×1200 |
|
Aspect ratio |
16:9 (4:3 adjustable) |
|
Brightness |
450cd/m2 |
|
Contrast |
1000:1 |
|
Color |
16.77 million colors |
|
Viewing angle |
Horizontal: 170°; Vertical: 170° |
Input(Each LCD)
|
BNC ×2 |
2K/3G/HD/SD-SDI input×2 |
|
BNC ×1 |
Composite input |
|
HDMI ×1 |
HDMI input |
|
3.5mm ×1 |
Analog audio input |
Output(Each LCD)
|
BNC ×2 |
2K/3G/HD/SD-SDI loop output |
|
BNC ×1 |
Composite loop output |
|
HDMI ×1 |
HDMI loop output |
|
3.5mm ×1 |
SDI, HDMI, Analog audio output |
Video Format
|
SDI |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (60 / 59.94 / 50) | |
| 1080p (60 / 59.94 / 50) | |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
|
HDMI |
480i/ 576i / 480p / 576p |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
|
CVBS |
NTSC / PAL |
General
|
Input voltage |
DC 6.5V-24V |
|
Power consumption |
≤36W |
|
Working temperature |
0°C～+40°C |
|
Working humidity |
10%～90% |
|
Storage temperature |
-15°C～+60°C |
|
Storage humidity |
10%～90% |
|
Dimensions |
484×177×112.8mm |
|
Net weight (main body) |
Net 2.8kg; With package 3.6kg |
