Die CINEMA EOS C400 definiert Vielseitigkeit neu

IMAGE SENSOR

Sensor

Full Frame Back-Side Illuminated (BSI) CMOS sensor

System

RGB primary color filter (Bayer array)

Sensor Modes

Full Frame / Super 35mm (Crop) / Super 16mm (Crop)

Total Pixels

Approx. 26.67 megapixels (6202 x 4300)

Effective Pixels

Approx. 19.05 megapixels (6008 x 3170): When 6000 x 3164 / 4096 x 2160 / 2048 x 1080 is selected as the resolution
Approx. 17.86 megapixels (5633 x 3170): When 3840 x 2160 / 1920 x 1080 is selected as the resolution

Effective Sensor Screen Size

Full Frame: 38.4 x 20.2 mm (40.7 mm on the diagonal): When 6000 x 3164 / 4096 x 2160 / 2048 x 1080 is selected as the resolution
36.0 x 20.2 mm (38.7 mm on the diagonal): When 3840 x 2160 / 1920 x 1080 is selected as the resolution

Dynamic Range

Canon Log 2: 1600% / 16 stops (at ISO 800)
Canon Log 3: 1600% / 14 stops (at ISO 800)

Base ISO

800 / 3200 / 12800

IMAGE PROCESSOR

Type

DIGIC DV7

LENS

Lens Mount

Canon RF mount

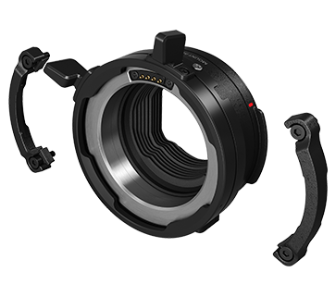

PL mount support via PL-RF Mount Adapter
EF mount support via EF-EOS R Mount Adapters

Lens Magnification Factor

Full Frame;
4096 x 2160 or 2048 x 1080: Actual focal length x Approx. 1.06
3840 x 2160 or 1920 x 1080: Actual focal length x Approx. 1.12

Super 35mm (Crop);
4096 x 2160 or 2048 x 1080: Actual focal length x Approx. 1.46
3840 x 2160 or 1920 x 1080: Actual focal length x Approx. 1.54

Super 16mm (Crop);
2048 x 1080: Actual focal length x Approx. 2.92
1920 x 1080: Actual focal length x Approx. 3.07

Digital Lens Correction

Peripheral Illumination Correction
Chromatic Aberration Correction
Diffraction Correction
Distortion Correction (RF lenses only)

ND Filter

2, 4 or 6 Stops. Up to 10 stops via built in ND filter system (in extended mode)

Iris Control (EF Mount Lenses)

1/2-stop, 1/3-stop or FINE control
Auto Iris

Cooke /i Technology Support™

Only when equipped with Mount Adapter PL-RF

Anamorphic Lens Support

x2.0 / x1.8 / x1.3

Image Stabilization System

5-Axis Combination IS (Optical and Digital) with supported lenses
Digital 5-Axis IS for non IS lenses

RECORDING

Internal Recording Media

1x CFexpress 2.0 (Type-B)
1x SD Card (SD / SDHC / SDXC)

Recording Time

Cinema RAW Light LT: 6000 x 3164 576 Mbps: approx. 118 Mins
Cinema RAW Light ST: 6000 x 3164 886 Mbps: approx. 77 Mins
Cinema RAW Light HQ: 6000 x 3164 1800 Mbps: approx. 37 Mins
XF-AVC: 4096 x 2160 500 Mbps: approx. 136 Mins
XF-AVC S: 4096 x 2160 500 Mbps: approx. 136 Mins
XF-HEVC S: 4096 x 2160 135 Mbps: approx. 505 Mins

Recording Formats

Cinema RAW Light (CRM), XF-AVC (MXF), XF-AVC S (MP4), XF-HEVC S (MP4)

Relay Recording

Yes

Double Slot (Simultaneous) Recording

Yes

Simultaneous Recording in Multiple Formats

Yes

System Frequency / Frame Rates

59.94 Hz mode (59.94P / 59.94i / 29.97P / 23.98P)
50.00 Hz mode (50.00P / 50.00i / 25.00P)
24.00 Hz mode (24.00P)

Cinema RAW Light Bit Rate / Bit Depth (PAL)

12-bit Cinema RAW Light LT :
FF / 6000 x 3164 / 50P [1160 Mbps]
FF / 6000 x 3164 / 25P [576 Mbps]
S35 / 4368 x 2304 / 50P [611 Mbps]
S35 / 4368 x 2304 / 25P [306 Mbps]
S16 / 2184 x 1152 / 50P [154 Mbps]
S16 / 2184 x 1152 / 25P [77 Mbps]

12-bit Cinema RAW Light ST :
FF / 6000 x 3164 / 50P [1780 Mbps]
FF / 6000 x 3164 / 25P [886 Mbps]
S35 / 4368 x 2304 / 50P [939 Mbps]
S35 / 4368 x 2304 / 25P [470 Mbps]
S16 / 2184 x 1152 / 50P [236 Mbps]
S16 / 2184 x 1152 / 25P [118 Mbps]

12-bit Cinema RAW Light HQ :
FF / 6000 x 3164 / 25P [1800 Mbps]
S35 / 4368 x 2304 / 50P [1910 Mbps]
S35 / 4368 x 2304 / 25P [954 Mbps]
S16 / 2184 x 1152 / 50P [479 Mbps]
S16 / 2184 x 1152 / 25P [240 Mbps]

XF-AVC Recording Bit Rate / Sampling (PAL / MXF)

4:2:2 10-bit (Intra-frame) :
4096 x 2160 or 3840 x 2160 / 50P [1000 / 750 / 500 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [500 / 375 / 250 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [250 Mbps]
2048 x 1080 or 1920 x 1080 / 50i [125 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [125 Mbps]

4:2:2 10-bit (Long GOP) :
4096 x 2160 or 3840 x 2160 / 50P [250 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [150 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [50 Mbps]
2048 x 1080 or 1920 x 1080 / 50i [50 / 25 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [50 Mbps]

XF-AVC S Recording Bit Rate / Sampling (PAL / MP4)

4:2:2 10-bit (Intra-frame) :
4096 x 2160 or 3840 x 2160 / 50P [1000 / 750 / 500 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [500 / 375 / 250 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [250 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [125 Mbps]

4:2:2 10-bit (Long GOP) :
4096 x 2160 or 3840 x 2160 / 50P [250 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [150 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [50 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [50 Mbps]

4:2:0 8-bit (Long GOP) :
4096 x 2160 or 3840 x 2160 / 50P [150 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [100 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [35 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [35 Mbps]

XF-HEVC S Recording Bit Rate / Sampling (PAL / MP4)

4:2:2 10-bit (Long GOP) :
4096 x 2160 or 3840 x 2160 / 50P [225 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [135 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [50 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [50 Mbps]

4:2:0 10-bit (Long GOP) :
4096 x 2160 or 3840 x 2160 / 50P [150 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [100 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [35 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [35 Mbps]

Proxy Recording Bit Rate / Sampling (PAL)

4:2:0 8-bit (Long GOP) :
2048 x 1080 or 1920 x 1080 35 / 16 / 9 Mbps
1280 x 720 [6 Mbps]

4:2:0 10-bit (Long GOP) :
2048 x 1080 or 1920 x 1080 [16 / 9 Mbps]

Slow / Fast Motion

6K RAW : up to 60FPS
4K : up to 120FPS
4.3K RAW (S35 Crop) : up to 100FPS
2K (S16 Crop) : up to 180 FPS

Interval Record

Yes

Frame Record

Yes

Pre Record (Cache Record)

3 Seconds

Digital Tele-converter

1.5x, 2x, 2.5x, 3x, Off

Photo Storage Media

SD Card

Photo Recording Size

4096 x 2160 / 3840 x 2160 / 2048 x 1080 / 1920 x 1080

SYSTEM

Display Type

3.5 inch LCD Touch Panel

Display Resolution

approx. 2.76 million dots (1280 x RGB x 720)

Display Touch Screen Functions

Focus Point Selection
Touch Screen UI for Shooting Settings

OSD for Vertical Shooting

Yes

Wave Form Monitor

Yes (Line / Line + Spot / RGB Parade / YPrPb Parade)

False Colour Display (Exposure Indication)

Yes (6 Colour Index)

Colour Bars

SMPTE / EBU / ARIB

Peaking

Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)

Zebra

Level 1; Level 2; Both

Markers

On / Off selectable: centre, horizontal / vertical, grid, aspect, safe area and user marker. Colour selectable

EVF

Built-In EVF

No

INPUTS / OUTPUTS

Audio In

2x Mini XLR 3-pin connector
1x 3.5 mm stereo mini jack
Built in Stereo microphones on camera body

Headphone Output

1x 3.5mm stereo mini jack

Video Monitor Output

1x 3G-SDI Output (BNC)

HDMI

1x HDMI (Type-A)

USB

1x USB-C Data Terminal (USB 3.2 Gen1)

SDI Output

1x 12G-SDI Output (BNC)

Time Code

1x DIN1.0 / 2.3 (Input / Output)

Genlock

1x DIN1.0 / 2.3 (shared with Sync & Return)

Sync

1x DIN1.0 / 2.3 (shared with Genlock & Return)

DC Input

12V (4-pin XLR / 11.5-20V)

Multi-Accessory Shoe

Yes (via camera body or top handle)

Remote Control Terminal

1x 2.5 mm stereo mini jack

Lens Terminal

1x 12-pin jack

Ethernet Terminal

1x RJ45 Connector (1000BASE-T compatible)

Grip

1x USB-C Terminal (for supplied Hand Grip only)

IP Streaming / FTP

IP Streaming via Ethernet / Wi-Fi connection
9 Mbps / 4 Mbps: 1920 x 1080 (59.94p / 59.94i / 50.00p / 50.00i)
UDP / RTP / SRT / RTP+FEC / RTSP+RTP

User LUT Input

Yes, in-built LUTs available for monitoring.
Custom LUTs can be applied directly to internal recordings via Look File function (compatible with 17 or 33 grid .cube files)

Video Connector

1x USB-C Terminal (for supplied LCD Monitor only)

Tally Signal

Yes, via Wi-Fi or Ethernet using XC Protocol

Return Signal Input

1x DIN1.0/2.3 (shared with Genlock & Sync)

Default Function Button Settings

1. MAGN.
2. PEAKING
3. WFM
4. S&F
5. ISO / GAIN
6. SHUTTER
7. S&F FPS
8. AUDIO STATUS
9. WB
10. SET WB
11. FUNC
12. (unassigned)
13. AF LOCK

User Assignable Buttons

13x (Body) / 3x (Hand Grip) / 2x (LCD Monitor)

MISCELLANEOUS

Tally Lamp

Yes, 2x

Custom Dial

Yes, 3x

Software Application Support

Cinema RAW Development
XF Utility
EOS VR Utility
Remote Camera Control Application
RAW Plugin for Avid Media Access
RAW Plugin for Final Cut Pro
XF Plugin for Avid Media Access
EOS VR Plugin for Adobe Premiere Pro
CV Metadata Plugin for Adobe After Effects
Live Link Plugin for Unreal Engine
CV Metadata Extraction Tool
MP4 Join Tool
HEVC Activator

Smartphone Application Support

Canon Multi-Camera Control
Content Transfer Professional
Browser Remote Control

EXPOSURE

Exposure Metering

Standard / Spotlight / Backlight

Exposure Compensation

AE shift function available. Target value (±8 steps from center)

Auto Exposure Mode

Auto Iris / Auto ISO

Push Auto Iris

Yes

Exposure Lock

No

Auto Gain Control Setting

Yes

ISO Sensitivity

1-Stop Display :
100* / 160** / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400*
1/3-Stop Display :
100* / 125* / 160 / 200 / 250 / 320 / 400 / 500 / 640 / 800 / 1000 / 1250 / 1600 / 2000 / 2500 / 3200 / 4000 / 5000 / 6400 / 8000 / 10000 / 12800 / 16000 / 20000 / 25600 / 32000 / 40000 / 51200 / 64000* / 80000* / 102400*
*when ISO Extended Range is set to ON
**when ISO Extended Range is set to OFF

Auto Focus System

Dual Pixel CMOS AF II + EOS iTR AF X

AF Frame Sizes

Full: approx. 100% (Vertical) x approx. 100% (Horizontal)
Large Zone (Vertical) : Video display range approx. 97% (Vertical) x 25% (Horizontal)
Large Zone (Horizontal) : Video display range approx. 43% (Vertical) x 76% (Horizontal)
Zone: Video display range approx. 43% (Vertical) x 25% (Horizontal)
Small Zone : Video display range approx. 15.9% (Vertical) x 11.8% (Horizontal)

Auto Focus Modes

Continuous AF / One-Shot AF

Face Detection AF

Yes (Eye / Face / Head / Body)

Animal Detection AF

Yes (Dogs / Cats)

Focus Guide

Yes, with compatible Canon lenses

Gain Setting

-6dB*, -3dB*, -2dB**～48dB, 51dB*, 54dB*
*when ISO Extended Range is set to ON
**when ISO Extended Range is set to OFF

SHUTTER

Control Modes

Speed / Angle / Clear Scan / Slow Shutter

Shutter Speed

1/1～1/2000 (total of 45 settings)

Shutter Angle

11.25º to 360º depending on frame rate

Slow Shutter (SLS)

1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate

Clear Scan

23.97 Hz～2000 Hz depending on sensor mode / frame rate

CUSTOM PICTURE

Stored Configurations

C1 : Canon 709
C2 : Canon Log 2
C3 : Canon Log 3
C4 : BT.709 Wide DR
C5 : BT.709 Standard
C6 : PQ
C7 : HLG
C8 : EOS Standard
C9 : EOS Neutral
C10 : User10 ～User20

HDR-HLG Profile

BT.2100 : Corresponds to ITU-R BT.2100
Vivid : Corresponds to Traditional Colour in ITU-R BT.2390

Colour Matrix

Neutral : Accurate colour reproduction
Production Camera : Colour reproduction for use in movie production
Video : Colour reproduction with contrast for TV broadcasts.

Image Adjustment Parameters

Master Pedestal
Master Black
Black Gamma
Low Key Saturation
Knee
Sharpness
Noise Reduction
Skin Detail
Colour Matrix Tuning
White Balance
Colour Correction

WI-FI & GPS SPECIFICATIONS

Wi-Fi (Optional Third Party Accessory)

In-built (2.4 / 5GHz bands)
Supporting 802.11a/b/g/n/ac

GPS Information (Optional Accessory)

Only when equipped with GP-E2 GPS Receiver)

WHITE BALANCE

Auto

Yes

Preset

Daylight (5600K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set B

White Balance Shift

-5 CC - +5 CC (Daylight / Tungsten)
-20 CC - +20 CC (Kelvin)

TIME CODE

Count Up System

Regen / RecRun / Free Run / External / Frame Count

AUDIO

Recording Format

RAW / XF-AVC : Linear PCM (24-bit / 48 kHz, 4 channels)
XF-AVC S / XF-HEVC S : Linear PCM (24-bit / 48 kHz, 4 channels) or MPEG2-AAC LC (16-bit 48kHz) 2 channels

ACCESSORIES

Supplied

LCD Monitor
LCD Attachment Unit
MC-5U Monitor Cable
Handle Unit
Camera Grip
BP-A60N Battery Pack
CA-CP300 B Compact Power Adapter
CG-A20 Battery Charger
Microphone Holder

Optional

BP-A60N / BP-A30N Battery Pack
BP-A30 / BP-A60 Battery Pack
CG-A20 / CG-A10 Battery Charger
CA-CP300 B Compact Power Adapter
MC-5U Monitor Cable
PL-RF Mount Adapter
EF-EOS R Mount Adapter
EF-EOS R Control Ring Mount Adapter
EF-EOS R Drop-In Filter Mount Adapter
EF-EOS R 0.71x Mount Adapter
Remote Camera Controller RC-V100
Remote Camera Controller RC-IP100
Remote Camera Controller RC-IP1000
DM-E1D Multi-Function Shoe Directional Stereo Microphone OC-E4A Off-Camera Shoe Cord
IFC-100U / IFC-400U Interface Cable

Third Party Accessories

Tascam CA-XLR2d XLR Microphone Adapter

POWER SOURCE

Power Supply (Battery)

BP-A60N (Supplied)
BP-A30N / BP-A30* / BP-A60* (Optional)

Power supply (Mains)

DC IN 12V terminal : DC 11.5V - 20V (4-pin XLR)

Power Consumption

Cinema RAW Light: FF / 6K / 59.94P - 32.5W
Cinema RAW Light: S35 / 4.3K / 59.94P - 30.4W
XF-AVC: FF / 4K / 59.94P - 31.6W
XF-AVC: FF / 2K / 59.94P - 29.7W

Recording Time

With supplied BP-A60N battery pack:
Approx. 155 - 170mins (depending on recording mode)

PHYSICAL SPECIFICATIONS

Dimensions (Main Body Only)

Approx. 142 x 135 x 135 mm

Weight (Body Only)

Approx. 1540 g

Weight (Accessories)

LCD Monitor: Approx. 155g
LCD Attachment Unit: 260g
MC-5U Monitor Cable: Approx. 25g
Handle Unit: Approx. 300g
Camera Grip: Approx. 270 g
BP-A60N Battery Pack: Approx. 465g
CA-CP300 B Compact Power Adapter: Approx. 219g
Battery Charger CG-A20: Approx. 145g
Microphone Holder + 2 screws: Approx. 60g

Operating Temperature Range

Approx. 0 to 40°C, (85% relative humidity)
Approx. -5 to 45°C, (60% relative humidity)

Footnotes:
[1]
RAW Recording only available via CFexpress
[2]
Based on 25P recording on a 512GB card at maximum bitrate
[3]
Relay Recording not available during RAW or S&F Recording
[4]
Proxy recording available in XF-AVC, XF-AVC S and XF-HEVC S (depending on the main format selected). Not available in S&F mode above 60FPS
[5]
Dual Pixel CMOS AF unavailable when recording above 60FPS
[6]
Pre Record not available during RAW Recording
[7]
Depending on Sensor Mode and Format selected
[8]
Available when Base ISO is set to Automatic
[9]
Available when Base ISO is set to Automatic
[10]
Multi-Accessory Shoe power supply and communication via LENS terminal are unavailable when using original BP-A30 / BP-A60 batteries
