FEATURES of the 2 AXIS PUSH BUTTON Magic ARM 3/8-16

Perfect for the manipulation of your On-board monitor

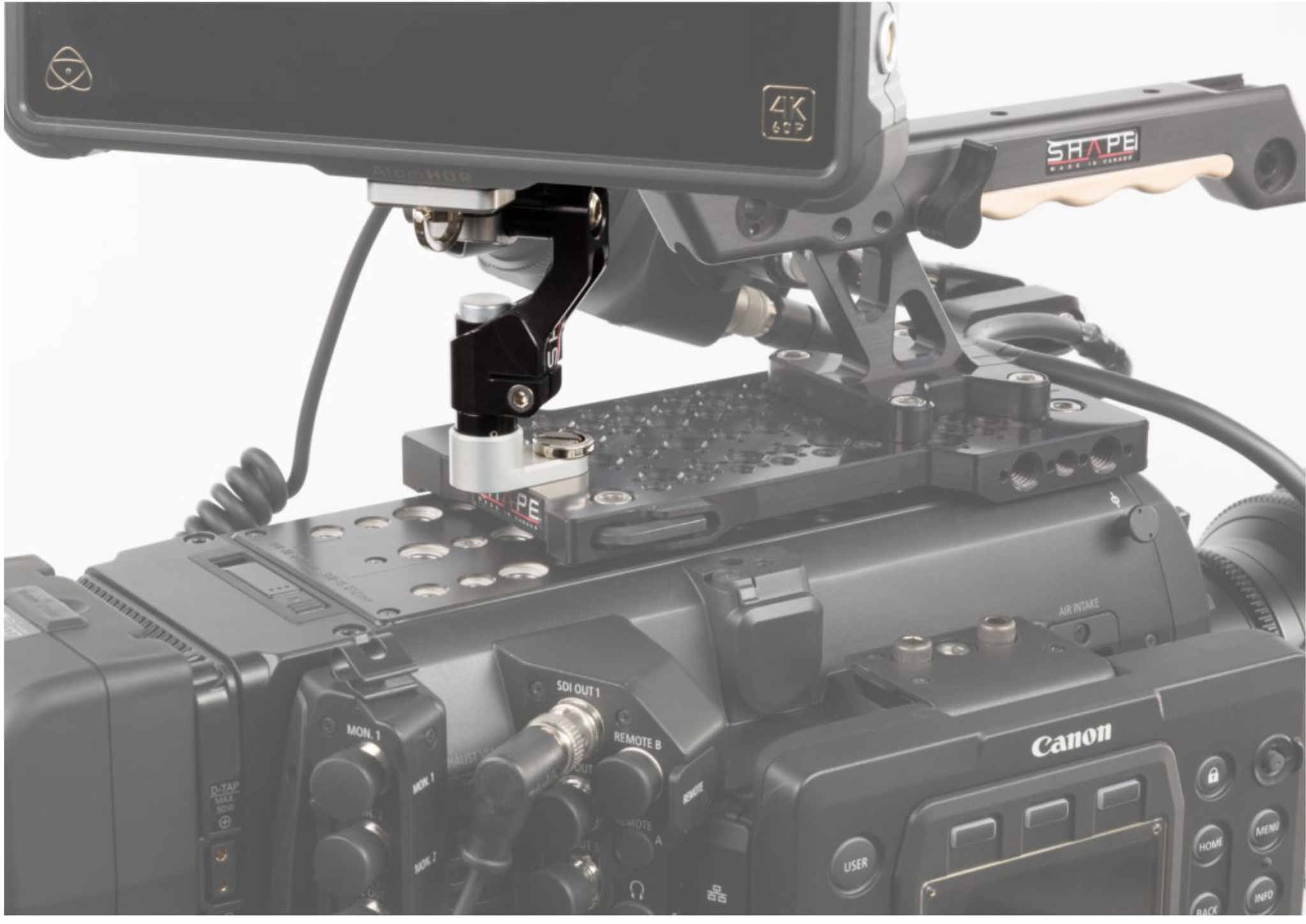

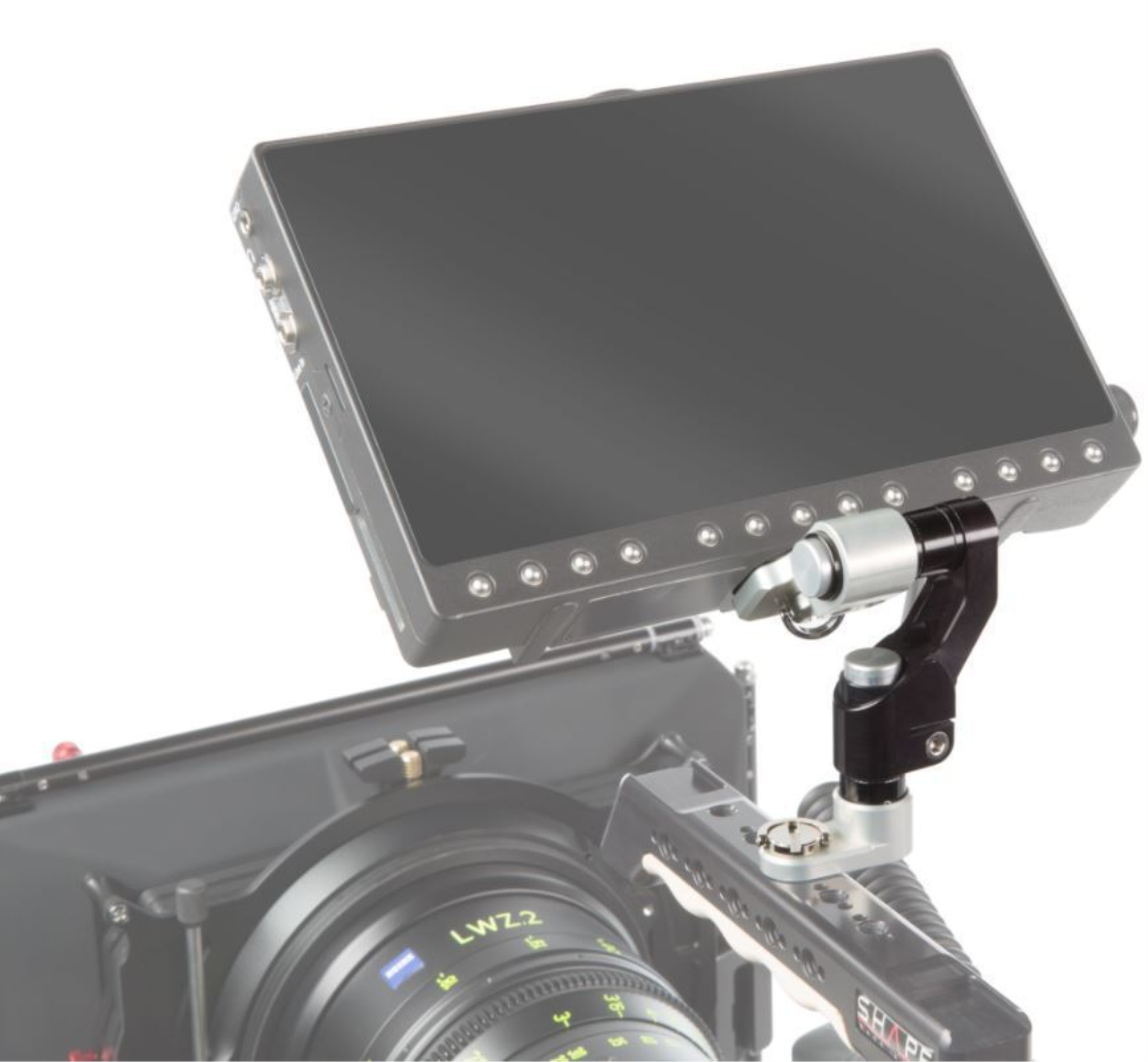

Our Push Button Arm is the perfect device to mount your monitor to your camera rig. It allows precise and quick adjustments of your camera monitor with the help of the push button technology.

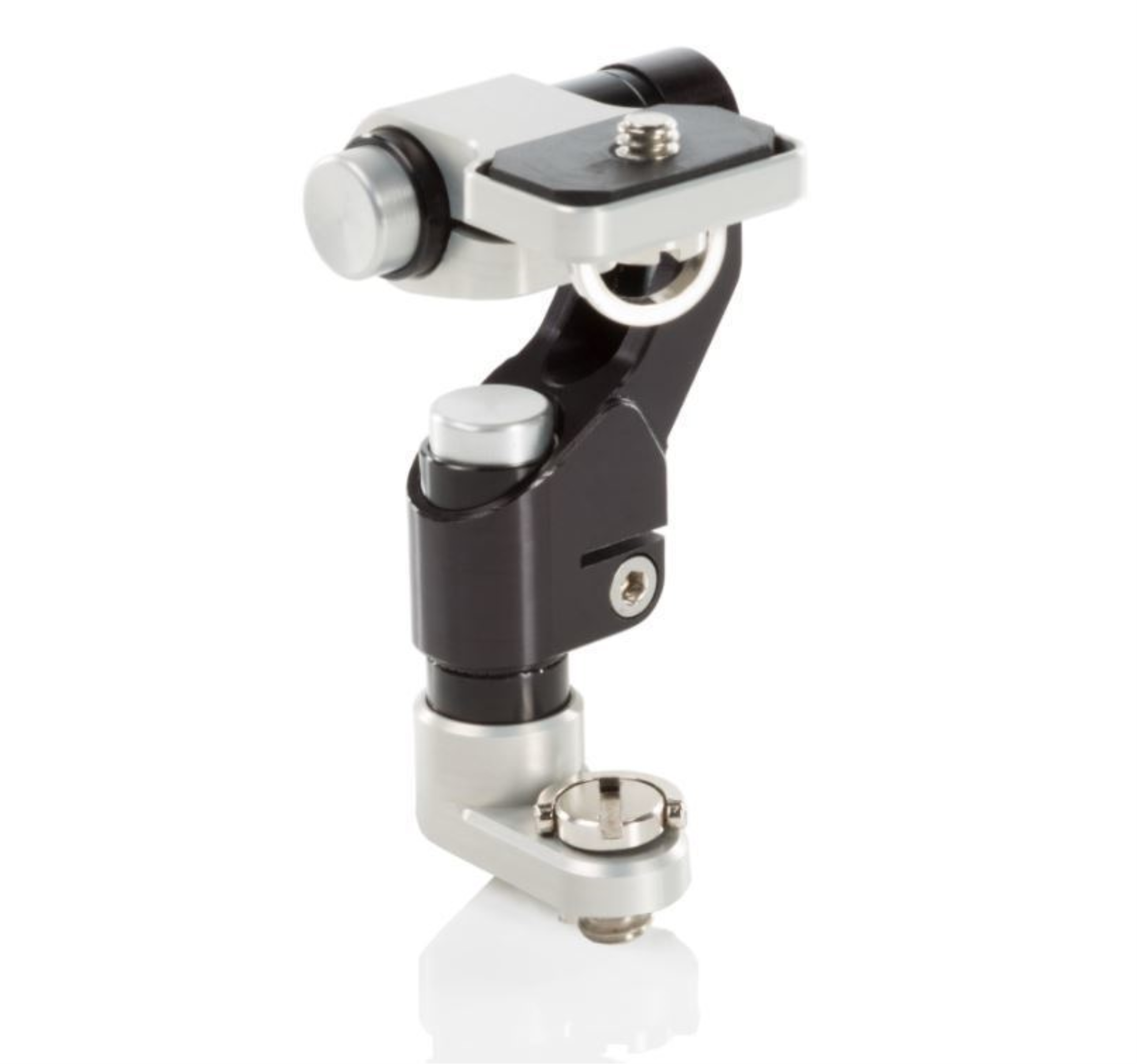

Support Arm with 2 Axis Push Button System

SHAPE is well known for its Push Button Handles, now used by so many professionals in the industry. Our patented technology allows the user to make quick and easy adjustments by simply pressing the button. Doing so, you are allowed 360 degrees of rotation to place the accessories in the best position for your use.

On this device, the camera support arm features 2 Push Buttons, allowing you to make vertical and horizontal positioning adjustments of the camera accessory from the top or the bottom of the arm.

Fixed Arm’s length of 3.5’’ (8.89 cm)

Not too long to maximize strength but just enough to allow a comfortable manipulation of your camera accessories.

Quickly Mount or Unmount Camera accessories to the arm

The arm can be used for supporting accessories such as a monitor, a view finder, a microphone, a camera light, etc. The 1/4-20 screw is mounted with a ‘bracket’ allowing you to manually fix the accessories to the arm without a tool

Quickly attach the Arm to your rig with 3/8-16 mounting screw

The bottom section of the device features a 3/8-16 mounting screw allowing you to easily mount or unmount the arm to your camera rig.

* Optional: You can also clamp the device to your 15 mm rods if you add our 15 mm Rod Bloc system to the bottom section (see the product sku RP215, 2 Axis Push Button Arm 15mm Rod Bloc).

Locking Stoppers

The bottom section features 2 stoppers (ARRI compatible locking attachment mechanism) to strongly fix the magic arm to the camera.

Lightweight & Robust

The device weighs only 0.11 kg (0.25 lb) and is made from hard anodized aluminum with stainless steel screws to prevent rusting.

WHAT'S IN THE BOX:

(1) 2 AXIS PUSH BUTTON ARM WITH 3/8-16 MOUNTING SCREW


ASSEMBLY PLAN, HR IMAGES & TUTORIALS

http://shapecamera.com/RPB2A-package

MATERIALS: CNC Machined Aluminum

COUNTRY OF ORIGIN: CANADA


PRODUCT DIMENSIONS (W-H-L)

in: 1.75 X 2.5 X 3.5
cm: 4.45 X 6.35 X 8.89


PRODUCT WEIGHT

lb: 0.24 kg: 0.11


PACKAGING DIMENSIONS (W-H-L)

in: 4 X 3 X 3

cm: 10.16 X 7.62 X 7.62

PACKAGING WEIGHT

lb: 0.44 kg: 0.20
