710-0345, V-RAPTOR™ 8K S35
16'555.00 CHF17'895.95 CHF incl.8.1% VAT
- V-RAPTOR 8K S35 Body
- DSMC AC Power Adaptor Pack (150W)
- RED Logo Sticker
- V-RAPTOR Information Card (incl. registration and support info)
- 2 Year Standard Warranty
Item no.
125.710-0345
Item no.
24 Monate
Availability
Not available (Verfügbarkeit unbekannt)

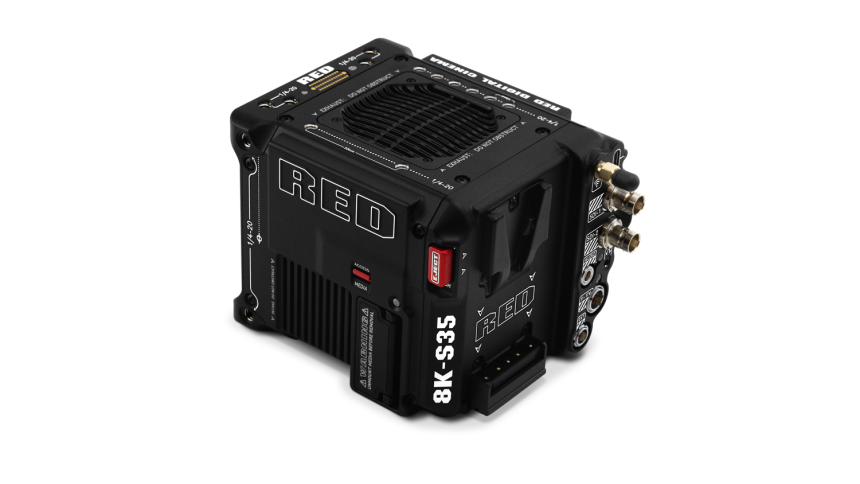

V-RAPTOR™ 8K S35 is another addition into the RED® DSMC3™ generation of cameras. Building on the same architecture of the V-RAPTOR™ 8K VV, the V-RAPTOR 8K S35 offers a new shooting format while leveraging the improvements in color science and performance of its larger 8K VV predecessor.
Featuring an 8K sensor optimized for Super35mm lenses, V-RAPTOR 8K S35 offers filmmakers a unique benefit of using the versatile range of Super35mm lenses while still capturing in the smooth true-to-life detail that 8K resolution provides. Create stunning slow-motion imagery at 120 fps using the full 8K Super35mm field of view, or up to 600 fps at 2K. With over 16.5 stops of dynamic range, V-RAPTOR 8K S35 is ready to capture stunning imagery in all types of environments. V-RAPTOR™ 8K S35 will also continue to feature RED’s proprietary REDCODE® RAW codec, allowing users to capture 16-bit RAW, and leverage RED’s latest IPP2 workflow and color management.
The 8K S35 sensor sits inside the same camera body as V-RAPTOR 8K VV, offering the same horsepower and flexibility filmmakers have come to rely on. The V-RAPTOR features a modernized platform in an amazingly compact package weighing in at barely over 4 lbs. With two 4K 12G-SDI outputs, XLR audio and phantom power via breakout adapter, and 1080p livestream, this system can handle most anything a shooter can throw at it.
Additionally, the V-RAPTOR/V-RAPTOR™ XL and the DSMC3 platform features advanced connectivity solutions which enable applications such as RED Connect for 8K R3D cinematic live streaming and remote record, remote control and monitoring, in-camera Frame.io integration, AWS direct upload, and more.
- V-RAPTOR 8K S35 Body
- DSMC AC Power Adaptor Pack (150W)
- RED Logo Sticker
- V-RAPTOR Information Card (incl. registration and support info)
- 2 Year Standard Warranty
| SENSOR TYPE | V-RAPTOR™ 8K S35 35.4 Megapixel CMOS | |||
|---|---|---|---|---|
| EFFECTIVE PIXELS | 8192 x 4320 | |||
| SENSOR SIZE | 26.21 mm x 13.82 mm (Diagonal: 29.63 mm) | |||
| DYNAMIC RANGE | 16.5+ stops | |||
| MOUNT TYPE | Integrated RF mount with RF lens support Supports Canon EF lenses via compatible Canon RF to EF mount adapters Accepts other Canon RF mount-based lens adaptors for diverse lens choices |
|||
| MAX DATA RATES | Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1] | |||
| REDCODE® RAW MAX FRAME RATES | 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456) 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024) 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592) 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160) 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728) 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296) 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864) |
|||
| BEST AVAILABLE REDCODE® SETTINGS | REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps |
|||
| REDCODE® RAW ACQUISITION FORMATS |
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1 4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1 3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1 |
|||
| APPLE PRORES | Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160) Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) |
|||
| CONSTRUCTION | Aluminum Alloy | |||
| WEIGHT | 4.00 lbs (without body cap and CFexpress card) | |||
| BATTERY TYPE | Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1] | |||
| DC POWER INPUT | 11-17V via 6-pin DC-IN | |||
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) | |||
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) | |||
| STORAGE RELATIVE HUMIDITY | 0% to 85% non-condensing | |||
| COLOR MANAGEMENT | Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import of CDLs |
|||
| AUDIO | Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz |
|||
| AUTOFOCUS | Contrast and Phase Detect | |||
| REMOTE CONTROL | Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload |
|||
| MONITOR OUTPUTS | Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio |
|||
| MONITOR OPTIONS | DSMC3™ RED® Touch 7.0” LCD Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing Integrated 2.4" LCD for camera control (no preview video) |
|||
| RED CONTROL | Access full camera controls and live preview from iOS or Android devices Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C |
|||
1. For more information on compatible accessories, go to red.com/third-party-accessories
Tech specs reflect both current and projected information. Everything is subject to change.
